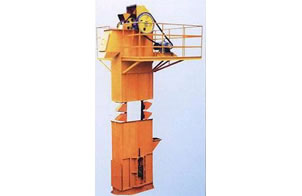

Bucket Elevator

Technical Parameters of NE Series Bucket Elevator:

Model Lifting capacity Bucket Weight of operation parts    Max. size of materials
(m3/h) Volume
(L)
Bucket gap (mm) Bucket speed
(m/min)
Percentage (%)
10 25 50 75 100
NE15 15 2.5 203.2 29.8 28 65 50 40 30 25
NE30 32 7.8 304.8 30.1 35 90 75 58 47 40
NE50 60 14.7 304.8 30.1 64 90 75 58 47 40
NE100 110 35 400 31 89 130 105 80 65 55
NE150 170 52.5 400 31 112 130 105 80 65 55
NE200 210 84.6 500 30 134 170 135 100 85 70
NE300 320 127.5 500 30 188 170 135 100 85 70
NE400 380 182.5 600 30 205 205 165 125 105 90
NE500 470 260.9 700 30 223 240 190 145 120 100
NE600 600 300.2 700 30 274 240 190 145 120 100
NE800 800 501.8 800 30 313 275 220 165 135 110

Technical Parameters of TH/TGH Series Bucket Elevator

Model Bucket shape Conveying capacity
(m3/h)
Bucket Chain Sprocket pitch diameter (mm) Operation speed of bucket
(m/s)
Max. size of materials
(mm)
Width (mm) Volume
(L)
Distance
(mm)
Pitch
(mm)
Breaking load
(KN)
TH315 zh 36.6 315 3.75 500 50 ≥320 φ630 1.4 35
sh 58.6 6
TGH315 zh 46 3.75 400
sh 80 6
TH400 zh 57.7 400 5.9 500 40
sh 92.8 9.5
TGH400 zh 80 5.9 400
sh 125 9.5
TH500 zh 73 500 9.3 688 86 ≥480 φ800 1.5 50
sh 118 15
TGH500 zh 100 9.3 516
sh 157 15
TH630 zh 114 630 14.6 688 60
sh 185 23.6
TGH630 zh 152 14.6 516
sh 246 23.6
TH800 zh 146 800 23.3 920 92 ≥570 φ1000 1.4 75
sh 235 37.5
sh 365 58

Technical Parameters of HL Series Bucket Elevator

Model Output (t/h) Rotating speed (r/min) Motor power (kw) Weight (kg)
10m m
HL160 15-8.0 1.25 3.0-11 2480 140
HL250 21-11 1.25 3.0-15 3390 180
HL300 28-16 1.25 5.5-18.5 3930 200
HL400 47-30 1.25 7.5-22 4990 260
HL315 59-35 1.4 4.0-11 3960 180
HL400 94-58 1.4 7.5-18.5 4980 205
HL500 118-73 1.4 11-22 5820 255
HL630 145-90 1.4 15-30 6980 310

Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of bucket elevator in China. Besides bucket elevator, we also provide customers worldwide with rubber belt conveyor, boiling fluidized bed cooler, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our bucket elevator, please contact us freely.

Related products
  • Rubber Belt Conveyor
  • Rubber Belt ConveyorAs a professional manufacturer and supplier of rubber belt conveyor in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as boiling fluidized bed cooler, gypsum dehydrator...

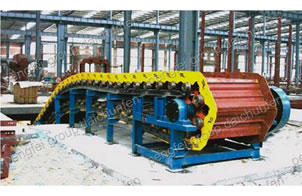

  • Apron Conveyor
