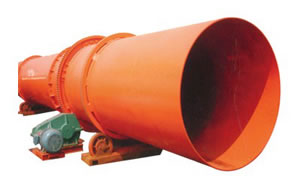

Rotary Dryer

Technical Parameters of GZ Series Rotary Dryer:

Specification and model Output (t/h) Rotating speed of rotary body Slope of cylinder Main motor Main speed reducer Weight (kg)
Model Power
1.5×14 5.0-10 3.30 2.5° Y180L-6 15.0 ZL70-40 20.5
1.8×14 6.0-12 3.10 2.5° Y200L1-6 18.5 ZSY200-40 25.2
1.8×18 6.5-13 4.14 2.5° YCT250-4B 22.0 ZL75-31.5 29.0
2.0×18 7.0-14 3.30 2.5° YCT250-4B 22.0 ZL75-31.5 39.6
2.0×20 7.5-15 3.30 2.5° YCT250-4B 22.0 ZL75-31.5 42.5
2.2×22 8.0-16 3.30 3.5% Y250M-6 37.0 ZSY250-35.5 49.0
2.4×22 10-20 3.30 2.5° Y280S-6 37.0 ZSY224-25 65.5
2.6×24 12-24 3.20 2.5° Y280S-6 45.0 ZL85-40 75.6
2.6×26 14-28 3.60 2.5° Y280M-6 55.0 ZSY315-31.5 83.6
2.8×24 15-30 3.85 3.0% Y315S-6 75.0 ZSY315-35.5 94.6
2.8×28 16-32 3.20 2.5° Y315S-6 90.0 ZSY355-Ⅱ35.5 98.6
3.0×26 18-36 4.20 3.5% Y315M-6 90.0 ZSY315-31.5 98.8
3.0×28 20-40 4.30 3.5% Y315S-4 110 ZSY315-45 110
3.0×30 25-50 3.85 3.5% Y315L1-6 110 ZSY355-35.5 115
3.2×26 25-50 3.45 2.5° Y315M-4 110 ZSY450 130
3.2×30 28-35 3.45 2.5° Y315L2-6 132 ZSY355-35.5 145
3.4×26 25-50 3.25 2.5° Y315M1-6 132 ZSY355-35.5 158
3.4×30 28-55 3.18 3.0% Y355M1-6 160 ZSY400-35.5 168
3.4×34 30-60 3.20 3.0% Y315M-4 185 ZSY400-31.5 182.5
3.6×28 35-70 3.18 2.0° YCT400-4A 160 ZSY500-45 175
3.6×30 40-80 3.18 2.0° Y315M-4 185 ZSY400-31.5 178
3.6×34 45-90 3.18 2.0° Y355S2-4 200 ZSY500-45 189
3.7×31 50-100 2.00 2.5% YKK355-4 185 ZSY500-35.5 189.5
3.8×30 50-100 3.18 2.5° Y355S2-4 200 ZSY500-35.5 210
4.0×30 65-130 3.18 2.5° Y355SL-6 220 ZSY500-35.5 221
4.0×34 70-140 2.50 3.0% YJS355L-6 250 ZSY560-40 235
4.2×32 80-160 2.50 3.0% YJS355L-6 250 ZSY560-40 250.5
4.2×36 85-170 2.09 3.0% YKK400-4 400 ZSY630-45 260
4.3×33 85-170 3.40 3.2% Y400-4 450 ZSY630-45 256
4.5×30 90-180 3.40 2.5° Y400-4 450 ZSY630-45 279
4.5×35 100-200 2.20 2.5° YJS500-6 500 ZSY630-45 297.0

Note:
1. the feeding temperature is about 150-350℃, and the discharging temperature is 70-90℃.
2. The production capacity depends on the components of materials and producing conditions.

As a professional manufacturer and supplier of rotary dryer in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as rotary cooler, rotary packer, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need rotary dryer, please don't hesitate to contact us.
