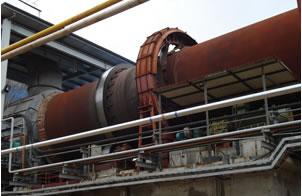

Titanium Dioxide Rotary Kiln

Working Principles:
The filtered titanium dioxide hydrolysate is sent to the tail of titanium dioxide rotary kiln with certain inclination. The combustion mixing chamber at the end of kiln head can send clean flame and hot air into the kiln body to dehydrate and calcine filter cake. After the hydrolyzed titanium dioxide filter cake has been hydrated at a temperature more than 1000℃, and calcined, under the help of titanium dioxide rotary kiln, it can roll along the circumferential direction as well as move along the axial direction from the high end to lower end until it finally finishes dehydration and calcination. Finally, the dehydrated and calcined titanium dioxide will be sent to a cooler through the double hydraulic discharge valve. The cooled and screened material is final titanium dioxide products.

Technical Parameters:

No. Specification (m) Drawing number Basic specification Main reducer Main motor Thrust roller type Supporting bearing Weight (t)
Rotating speed  (r/min) Slope (%) Output (t/d) Model Power  (kW) Rotating (r/min)
1 Φ2.4×38 (T929) 0.2 ~0.6 2.2 30 ZS125 30 1470 Mechanical Rolling 150
2 Φ2.8×53 J920 0.1 ~0.3 4 50 ZS145 22 1470 Mechanical Rolling 271
3 Φ3.2×55 J931A 0.1 ~0.3 4 67 ZS165 55 1470 Hydraulic Rolling 275.4

Note: Parameters in the form are only for reference, and specific ones need referring to particular contract.

Established in 1994, Jiangsu Pengfei Group Co., Ltd is a professional manufacturer of titanium dioxide rotary kiln in China. Besides titanium dioxide rotary kiln, we also provide customers worldwide with suspension preheater, conditioning tower, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. With the certification of ISO9000 and CE, our products have been well received by customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you're interested in our rotary kiln, please contact us freely.
