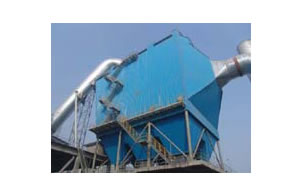

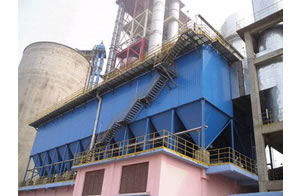

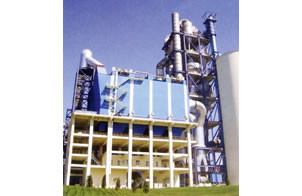

BFRS Kiln Inlet Bag Filter

Model BFRS700
-2×3
BFRS700
-7
BFRS1200
-2×6
BFRS1200
-2×7
BFRS1200
-2×8
Technical performance Flue gas treating volume ≤88500 102100 310000 ≤370000 ≤423000
Gas temperature <250 <250 ≤250 ≤250 ≤250
Feeding dust concentration ≤80 80 ≤80 ≤80 ≤80
Discharging dust concentration ≤100 100 ≤100 ≤100 ≤100
Total filtering area (m2) 4116 4872 14033 16263 18586
Filtration air speed (m/min) 0.36 0.34 0.37 0.38 0.38
Net filtration air speed (m/min) 0.5 0.46 0.45-0.49 0.46-0.49 0.45-0.48
Resistance of environmental protection equipment(Pa) 1470 1766 1470 1470 1470
Pressure of environmental protection equipment(Pa) 3920 3920 3920 3920 3920
Pressure of air inlet (Pa) >-1500 -290~-490
Structural performance Chamber amount×bag amount in each chamber 6×140=840 7×140=980 12×138=1656 14×138=1932 16×138=2208
Specification of filtering bag φ200×7794 φ200×7794 φ302×9296(135 bags)
φ302×7162(3 bags)
φ302×9296(135 bags)
φ302×7162(3 bags)
φ302×9296(135 bags)
φ302×7162(3 bags)
Material of filtering bags CW300-FQ803 CW300-FQ803 CW300-FQ803 ETWF500
S=0.45
ETWF500
S=0.45
Blowback fan model×static pressure×air volume Y5-47NO8
2292 Pa×
16800
230IE×14〞
×15254
Y5-48
NO12.5
2980 Pa
×35240
Y5-47
NO12D
3577 Pa×
46000
Y5-47
NO12D
3577 Pa×
46000
Rotating speed of motor×shaft power Y200L-4
30kw
1488rpm
×23kw
Y280S-4
1450rpm
×75kw
Y280S-4
1450rpm
×75kw
Y280S-4
1450rpm
×75kw
Specification of spiral gate   300×300   14 blowback fans
φ914QGB
-FQ125×355
16 blowback fans
φ914QGB
-FQ125×355
Lift valve specifications×amount
Air cylinder model
Three φ510
10A-5
WFA1008
145A5
Seven φ510
QGBⅡF-100
×280-MF1
Twelve φ914
QGB-FQ125
×355-L2
Fourteen φ914
QGB-FQ125
×355
Sixteen φ914
(36°)
QGB-FQ
125×350
Purge valve specification×amount
Air cylinder model
One φ510
10A-5VFA
100B148A5
One φ460
QGBⅡF-100
×280-MF1
One φ914
QGB-FQ125
×355-L2
One φ914
QGB-FQ125
×35
One φ914
QGB-FQ125
×35
Butterfly valve×amount
Cylinder
Six 600
×90010A-
5VFA100B
148A5

Overall dimensions L×W×H(mm) 13491×9144
×17555
26423×3765
×17450
18288×21232
×18617
21336×21032
×16375
24384×21032
×16375
Equipment weight (kg) 103017 108999 373890 426400
axial flow fan         35-11NO6.3
1450rpmYSF
-80240.75kw


As a professional manufacturer and supplier of kiln inlet bag filter in China, Jiangsu Pengfei Group Co., Ltd can also provide you with various other machines, such as cyclone environmental protection equipment, cement production line, cement grinding plant, industrial kiln and furnace, grinding equipment, crushing equipment, environmental protection equipment, cooling equipment, drying equipment, compound fertilizer equipment, packing machine, chemical equipment and electrical control system. Most of our products have passed the certification of ISO9000 and CE, and they have been quite popular among customers from as many as 60 countries and districts such as Germany, Russia, Brazil, Egypt, Iran, Japan, South Korea, Bengal, Pakistan, Turkey, Burma, Vietnam, South Africa, Columbia, Bolivia, etc. If you need kiln inlet bag filter, please don't hesitate to contact us.
